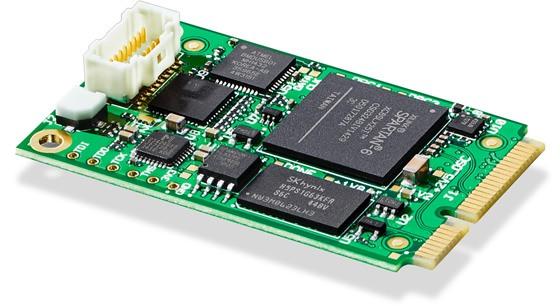

Blackmagic Design Decklink Micro Recorder
Blackmagic DeckLink Micro Recorder este un recorder video in miniatura ce poate fi introdus intr-un port PCIe al placii de baza. Placa de captura poate inregistra imagini la rezolutii SD si HD de pana la 1080p cu 30 cadre pe secunda.
Placii de captura i se pot adauga intrari video SDI si HDMI folosind conectorii Hirose® si Molex®.

Conexiuni
PCIx1 Gen 1
PCI Express® Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification.
Standarde
SD Format
525i/59.94 NTSC, 625i/50 PAL.
HD Format
720p50, 720p59.94, 720p60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080i50, 1080i59.94, 1080i60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.
Video Sampling
4:2:2.
Precizie Culoare
8, 10-bit YUV 4:2:2.
Conformitate
SMPTE 259M, 292M, 296M, and HDMI.


Sisteme operare compatibile
Windows 7, 8.1 and 10 all 64-bit.
Linux

Consum putere
3 Watts max
EMC Certifications
EMC, FCC, CE, Ctick.

• Specificatii temperatura de operare

Temperatura de operare
-25°C to 55°C (-13°F to 131°F)

• Temperatura de stocare

-40°C to 75°C (-40°F to 167°F)

• Umiditate

0% to 90% fara condensare

In pachet
DeckLink Micro Recorder
